product manual
◎ heating steam heat, electricity, electric steam dual-use three ways.
◎ Use temperature: steam heating 50-140 ℃, maximum 150 ℃; electric heating 50-350 ℃;
◎ temperature controlled automatically, and has recorder record;
◎ inside walls are fully welded, are used at each transition arc transition, no dead ends.
◎ sealing machine, a unique rail seal, ensure that the sealing machine;
◎ inlet is equipped with high efficiency air filter; Moisture port supporting the efficiency air filter.
◎ double-door two-door oven achieve mechanical interlock;
◎ oven inside the parts can be assembled and disassembled quickly installed to facilitate cleaning;
◎ The control system has text display and touch screen for your choice;
◎ machine in line with "GMP" requirements.
Schematic

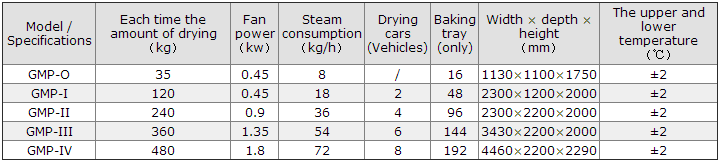

TechnicalSpecifications
