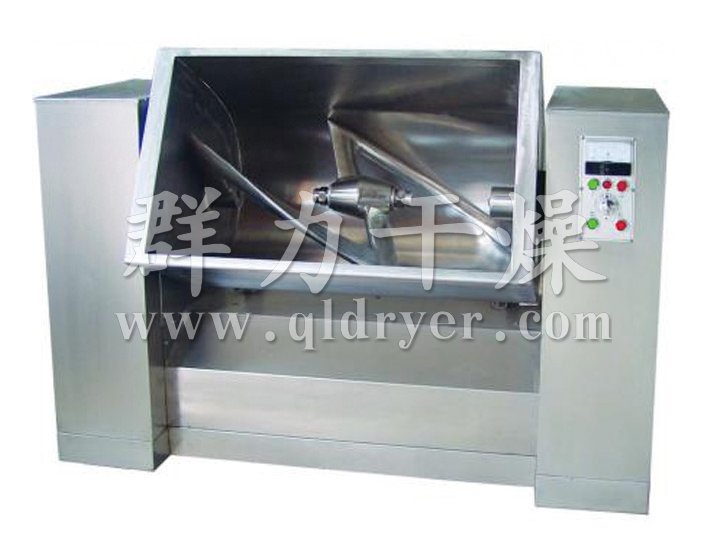

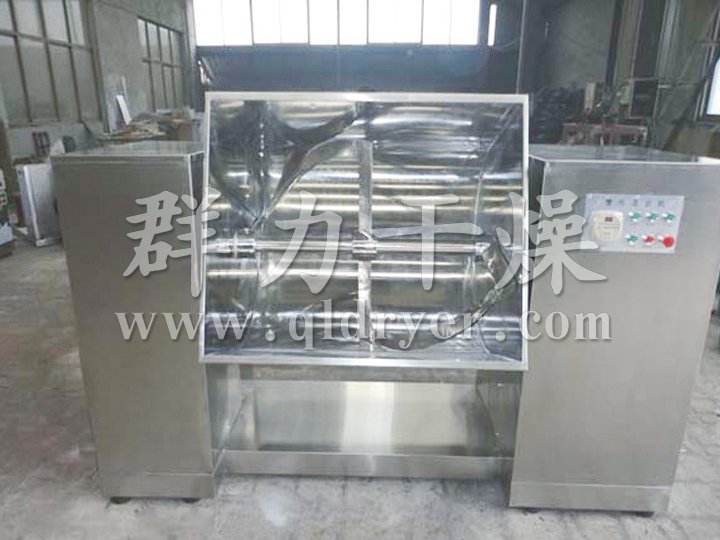

CH Groove Mixer

Keywords: Groove Mixer
Overview: CH type mixer is widely used for mixing powder or wet raw materials and can make the main and auxiliary raw materials with different proportion uniform. The places where contact the raw materials are made of stainless steel.The gap between blades is small and there is no dead corner. At the ends of stirring shaft,there are seal devices.It can prevent from the raw material leakage.
Order
Detail Images Customer Demo

DESCRIPTION

It is particularly suitable for mixing powder or damp materials that required high uniformity and high specific gravity.

FEATURES

1. The raw materials contact area is made by stainless steel.
2. The gap between machine body and blades is small.
3. There is no dead corner in mixer.
4. The stirring shaft has sealing device in both ends to prevent the raw materials leaking out.



APPLICATION
This machine is widely used in many industries such as pharmaceutical industry, foodstuff industry, chemical industry, electronics industry, and etc.


Technical Parameter

capacity(L) 100 150 200 400
Power of motor (kw) 2.2 3 3 5.5
Speed of stirring (rpm) 24 24 24 24
Inclined (×) 105 105 105 105
Weight (kg) 350 500 650 1200
Overall dimensions (mm) 1400×500×1000 1600×600×1100 1800×700×1200 2000×820×1460

The bulk density of material is made based on 0.6g/cm3, Please point out if it’s over .
