DESCRIPTION

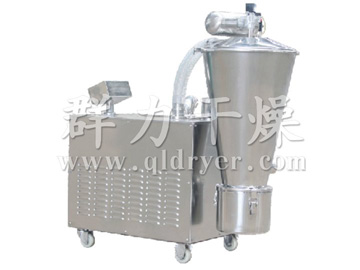

ZSl-III Serial Vacuum Feeder is a third-generaticn new-type vacuum feeder recently developed by our company. It has advantages of fast feeding, long service life, simple operation, clean and in conformity with requirements.
APPLICATION
◎ Used for powder, small grain and ball materials with diameter less than 5mm;
◎ Used for materials feeding for various kinds of sealed containers and equipments such as two-dimension, three-dimension, double-cone, V-shaped eta.
Technical parameters
Model | ZSL-Ⅲ-2.2 | ZSL-Ⅲ-3.0 | ZSL-Ⅲ-4.0 | ZSL-Ⅲ-5.5 | ZSL-Ⅲ-7.5 |
Working Pressure (kpa) | <18 | <20 | <22 | <28 | <31 |
Air Volume (m3/h) | 210 | 300 | 330 | 370 | 480 |
Power (kw) | 2.2 | 3.0 | 4.0 | 5.5 | 7.5 |
Transporting Capacity (kg/h) | 900-1200 | 1200-1500 | 1500-1800 | 1800-2100 | 2100-2400 |
