WORKING PRINCIPLE

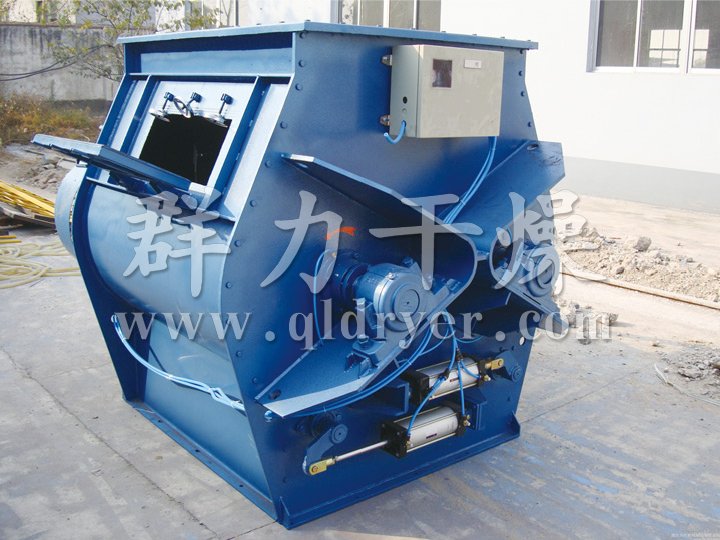

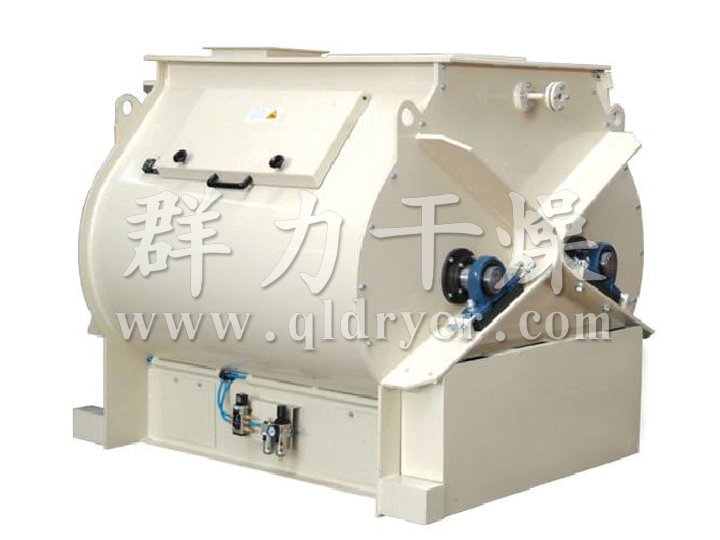

WZ Series Zero-Gravity Mixer is a strong and high efficiency mixing machine. It has two mixing axles rotate reversely at an identical revolution in the horizontal drum body. The paddles are distributed on the axles to ensure that the material to move in the direction of radical, circulating, and axial. The material can be mixed evenly in a short time.
APPLICATION
It is suitable for the drying and mixing of the following materials: Chemicals, Detergents, Paints, Resins, Glass, Silicon, Paint, Pesticides, Fertilizers, Feed, Feed Additives, Wheat Flour, Milk Powder, Spices, Trace Elements, Coffee, Salt, Additives, Plastic, Pulps, Powder.
FEATURES
1. High mixing precision, high mixing speed, and low energy consumption.
2. The discharging method can be pneumatic, electrical, and manual.
3. The atomizing device can be distributed on the cylinder cover to realize the solid-liquid mixing.
Technical parameters
| Model (m3) | WZ-0.05 | WZ-0.1 | WZ-0.3 | WZ-0.5 | WZ-1 | WZ-2 | WZ-3 | WZ-4 | WZ-6 |
| Mixed amount/batch (kg) | 24-30 | 40-60 | 120-180 | 200-300 | 400-600 | 800-1200 | 1200-1800 | 1600-2400 | 2400-3600 |
| Equipped power (kW) | 2.2 | 3 | 4-5.5 | 5.5-7.5 | 7.5-11 | 11-15 | 18.5-22 | 22-30 | 30-37 |
| Weight (kg) | 250 | 360 | 750 | 880 | 2100 | 2740 | 3800 | 5100 | 6200 |
